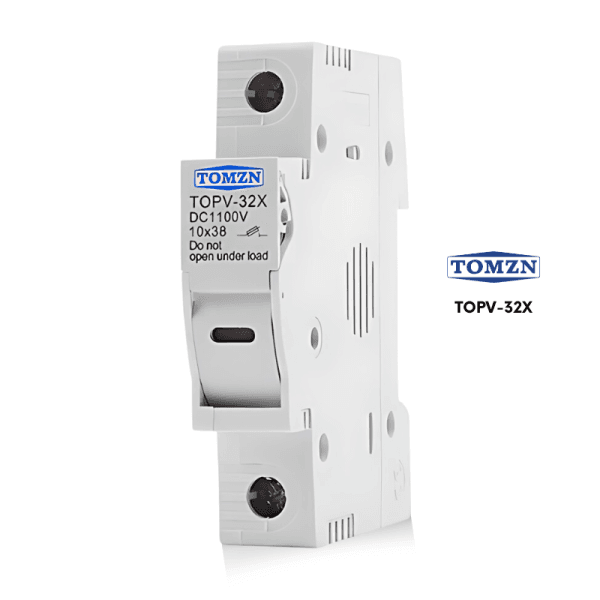

TOPV-32X Fuse Holder TOMZN Solar PV 2P 1000V Rumah Sekring 10x38mm

This holder is suitable for PV fuses rated 3A, 10A, 15A, 20A, 25A and 30A. The maximum voltage is 1000V.  The fuse holder can be combined with the following PV String Fuses which is essential protection for solar panels.

– 1000V DC-20B

– Modular 45mm cut out – 1 module (17,5mm) X pole

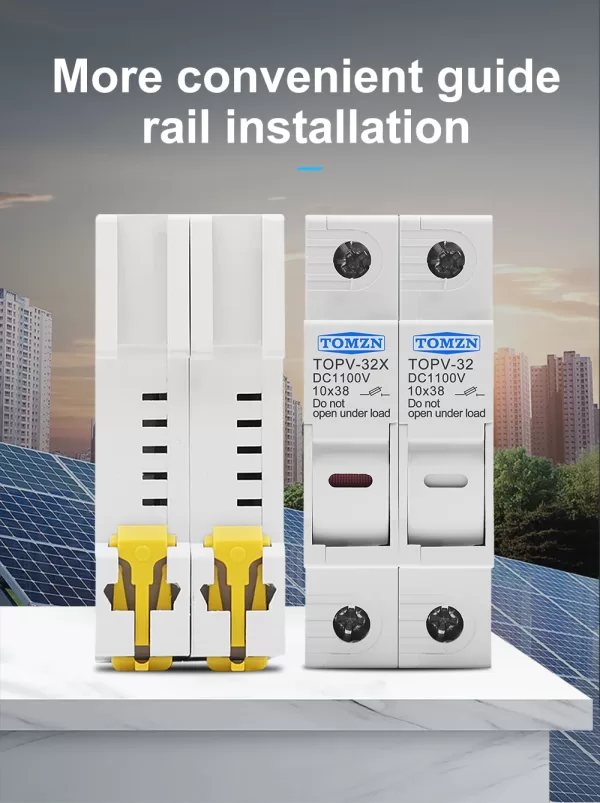

– Mounting 35mm DIN rail

– High temperature resistant plastics

– Elevated insulation characteristics

Please noted, this link only for fuse holder, if you need the fuse, please buy from the link below.

If you need the fuse you can buy from the link below.

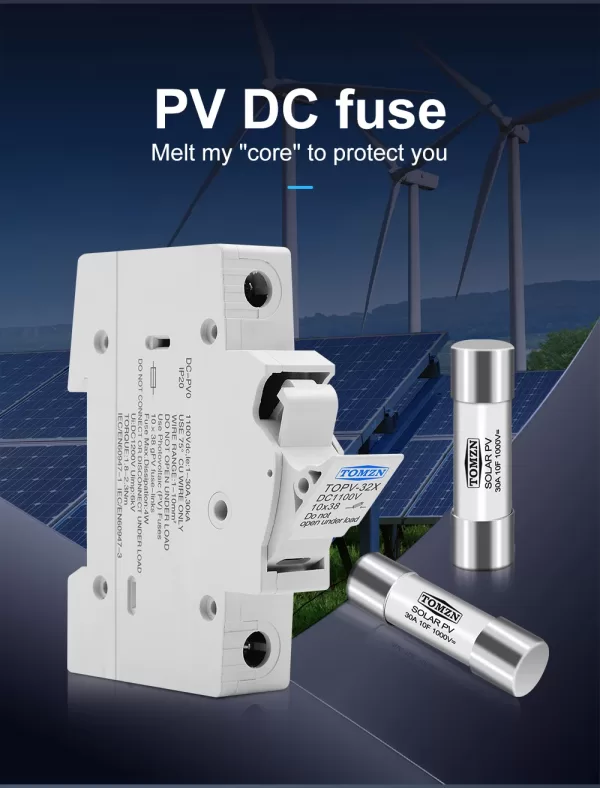

Fuse Holder for PV String Fuses

PV String Fuses for solar panels  – 1100VDC

A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings.
The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.

Applications

Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1100VDC

Electrical Characteristics for TOPV-32X Fuse Holder
Rated voltage 1000VDC
Amps  10A,15A,30A
Rated braking capacity 33kA dc
Minimum interrupting rating 1.3x In
Time constant under 1ms

Standard
IEC 60269-6, EN 60947-3, DC-20B
