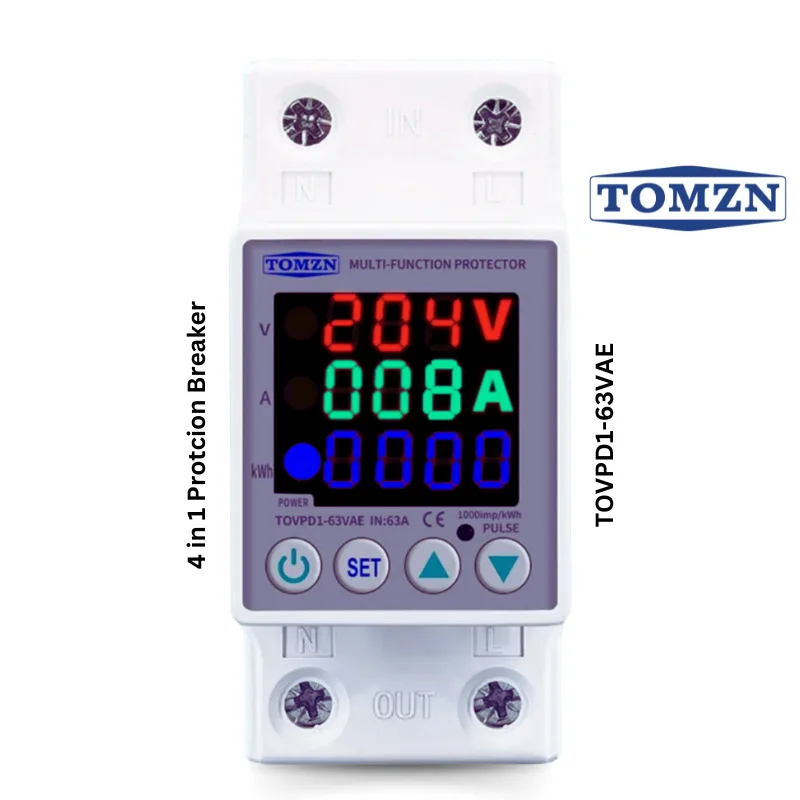

TOVPD1-63VAE 4 IN1 Protection Breaker is the unltimate need of every electrical panel system in Pakistan.
Tomzn voltage protector TOVPD1-63VAE

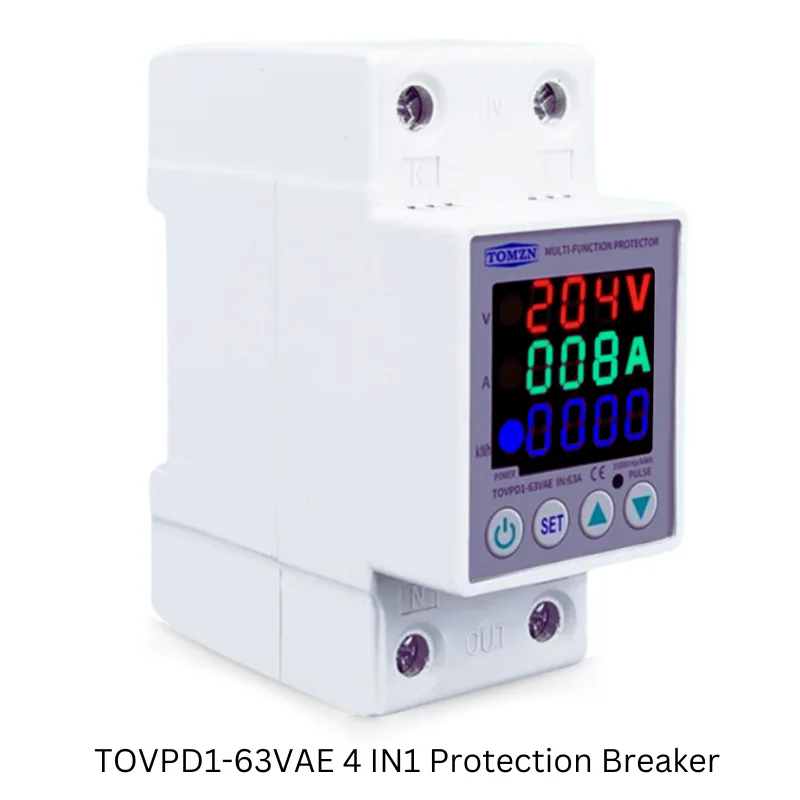

TOVPD1-63VAE 4 IN1 Protection Breaker wholesale rate in Pakistan
63A 230V 4 IN 1 Display Din rail adjustable over and under voltage protective device protector relay with over current protection.
tomzn protector breaker settings in Pakistan
Product specification for tomzon protector
- Rated voltage: 140-300V; Frequency: 50Hz/60HZ
- Under voltage protection 140V-210V (adjustable) (default: 170V) can be disable
- Over voltage proteciton 230V-300V (adjustable) (default: 270) can be disable
- Over current protection 1A-63A (adjustable) (default: 40A)
- Reconnect time (delay on time): 1-500s (default: 30s)
- Voltage meter
- Ammeter
- Energy meter

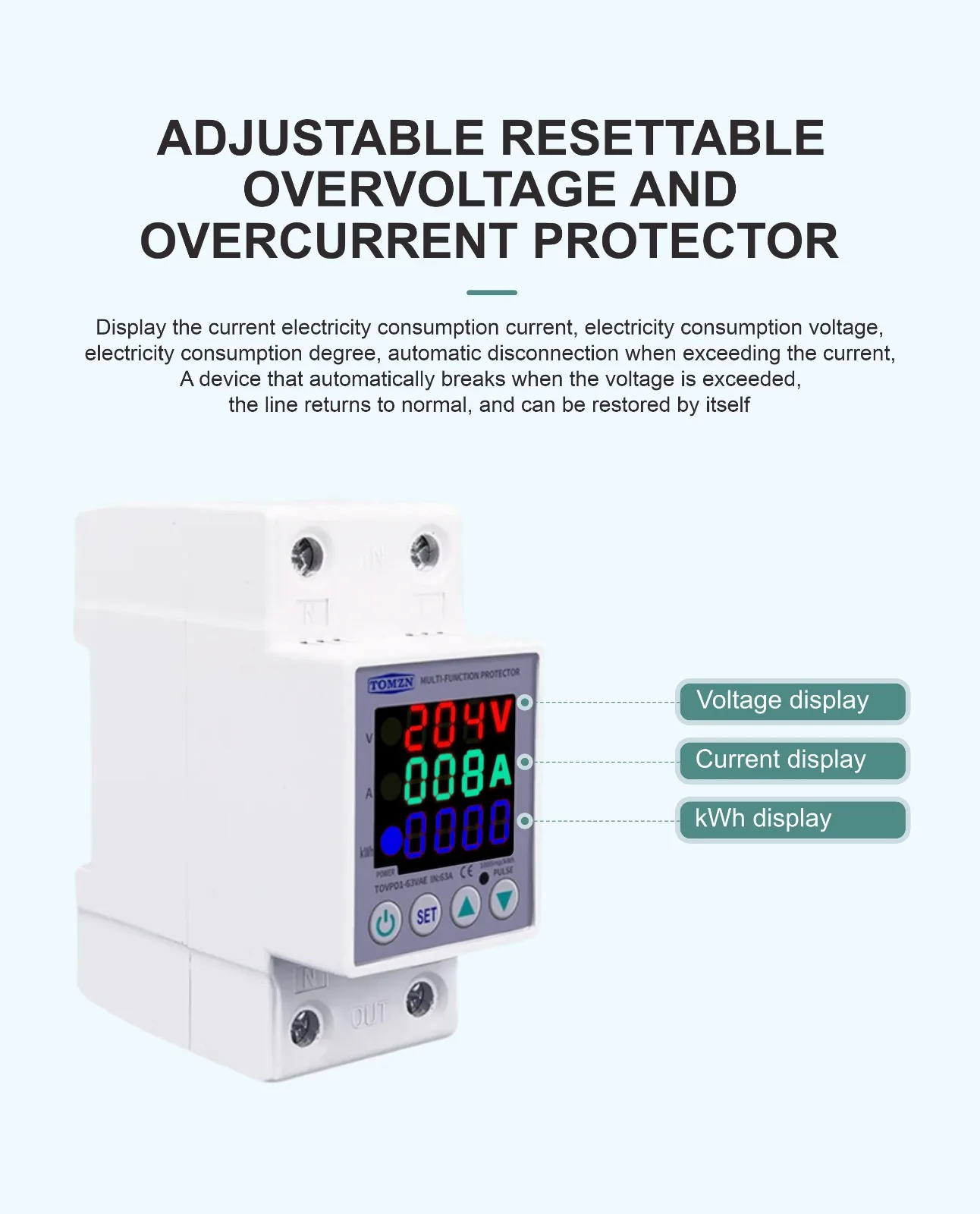

tomzn voltage protector
When power off, the product can memory the Kwh, over voltage, under voltage and over current value.
When V LED flash, it means over or under voltage protection
When A LED flash, it means over current protection.
How to setup Tomzon Protector Breaker in Pakistan
tomzon protector settings in Pakistan
Nadeen Ali –
best tomzn protector breaker in Pakistan
