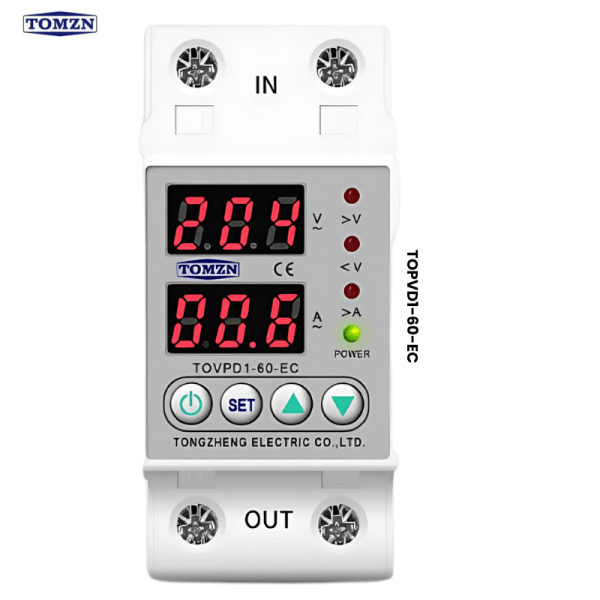

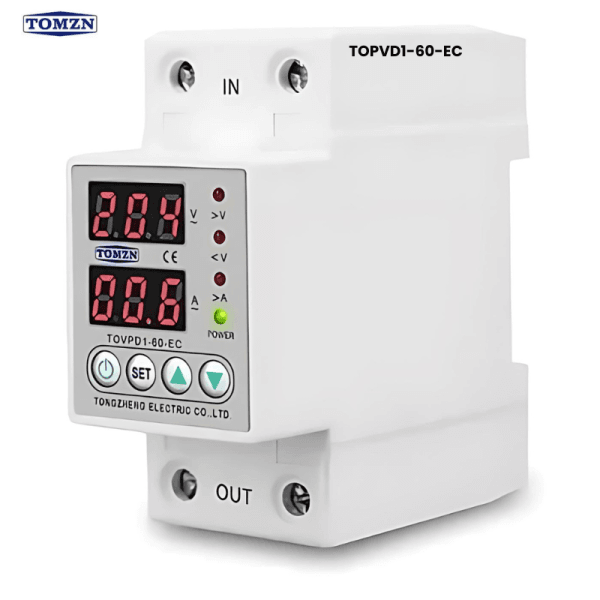

Adjustable over under voltage protector model number TOVPD1-60-EC is distributed by Tomzn Pakistan
Functions of TOVPD1-60-EC :
- Over-voltage protection
- Under-voltage protection
- Over-current protection
- Automatic recovery
- Voltage display(voltage measurement)
- Current display (current measurement)
Features:
- Disable the over-voltage protection, and press the up button when reaching 300V
- Disable the under-voltage protection, and press the down button when reaching 150V
- The product can memorize the over-voltage, under-voltage, and over-current values when power is off.
- When V LED flashes, it means over or under-voltage protection
- When A LED flashes, it means over-current protection.
Specifications of Adjustable over under voltage protector:
- Model number: TOVPD1-60-EC
- Power supply:230VAC 50/60Hz
- Max. Loading power: 1~63A Adjustable(default:63A)
- Over-voltage protection value range:230V~300~OFF(default:270V)
- Over-voltage recovery voltage range:225V–295V(default:250V)
- Over-voltage protection action time:0.1s~30s(default value:0.5s)
- Over-voltage recovery delay time:1s~500s(default:30s)
- Under-voltage protection value range:140V–210V –OFF(default:170V)
- Under-voltage recovery voltage range:145V–215V (default:190V)
- Under-voltage protection action time:0.1s~30s(default:0.5s)
- Under-voltage recovery delay time:1s~500s(default:30s)
- Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A)
- Over-current action range:0.1~30 second (default:0.5s)
- Over-current recovery delay time:1s~500s(default:30s)
- Power-on delay time:1s~500s(default:10s)
- Power consumption: <2W
- Electric machinery life: 100,000 times
- Installation:35mm DIN rail
