Adjustable reset method automatic resetor manual reset
1 NO&INC contacts
Failure recording with last 3 faults
Protective Functions Applications:
Phase Loss(Failure)
Pase Sequence(Reversal)
Phase Unbalance(Asymmetry)
Undervoltage
Overvoltage
Applications: Pumps, Fans, Refrigeration Unit, Blowers, Motors, Compressors, Lifts, Elevators, Crane, Mining excavators and conveyors
Rated voltage: 380V 50-60Hz
Operating range: 300-490VAC
Brand Name:TOMZN
Theory:Voltage relay
Contact Load:Low Power

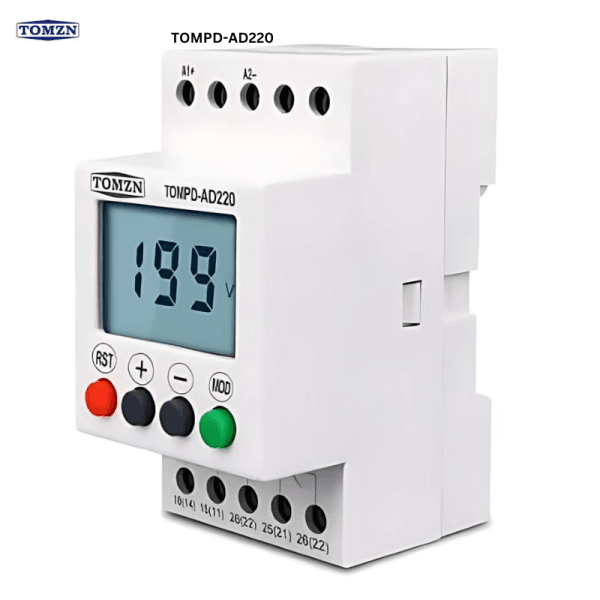

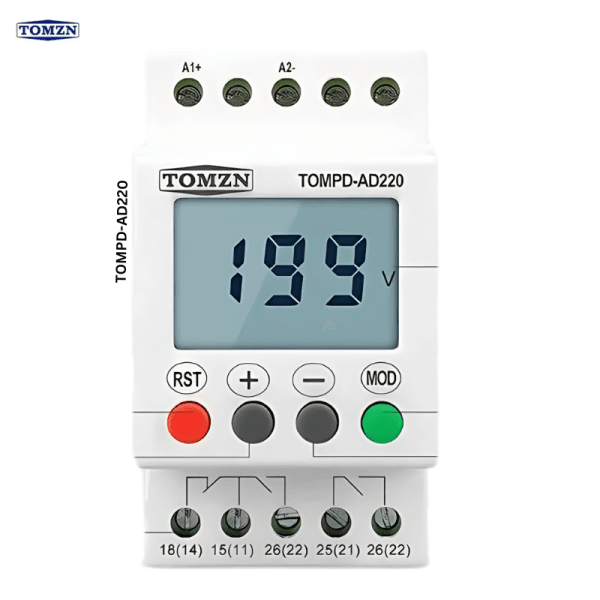

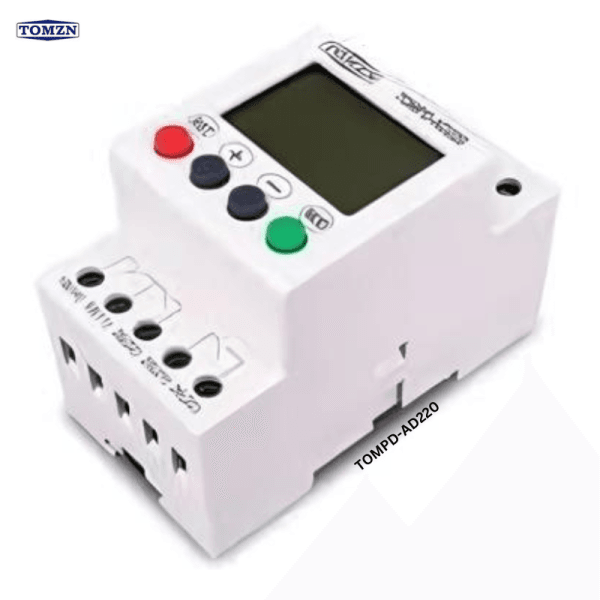

Model Number: TOMPD-AD220 – 110V/220V 50-60hz
Protect Feature:Sealed
Power Source:AC
Usage:General Purpose
color:White
Material:plastic
size:54 x 80 x 54mm
